PEERLESS MISSION U500 (Urine Analysis Testing System)
In Stock
Key Features :
- Upto 500 T/hr, ideal for medium / large sized laboratory.
- Methodology : Reflectance Photometry.
- Large colour LCD touch screen offers simple navigation.
- Automatic strip detection and alignment for better efficiency.
- Reads strips with upto 14 parameters.
- Flags abnormal results automatically.
- Stores upto 2000 results.
- Include RS232 and USB ports for data transfer to an external computer or LIS.
This product has been added to 1 people'scarts.
In Stock
- 100% after sales service.
- 7 Day Replacement Policy
- Hassel Free Cancellations
- Cash On delivery
- Minimum 6 Months of Shelf life (Applicable on Reagent, Chemical & Kits)
Description

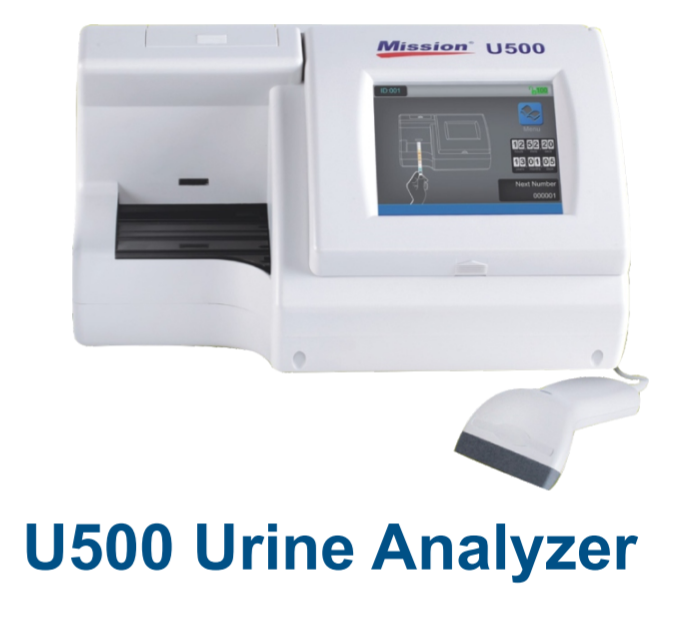

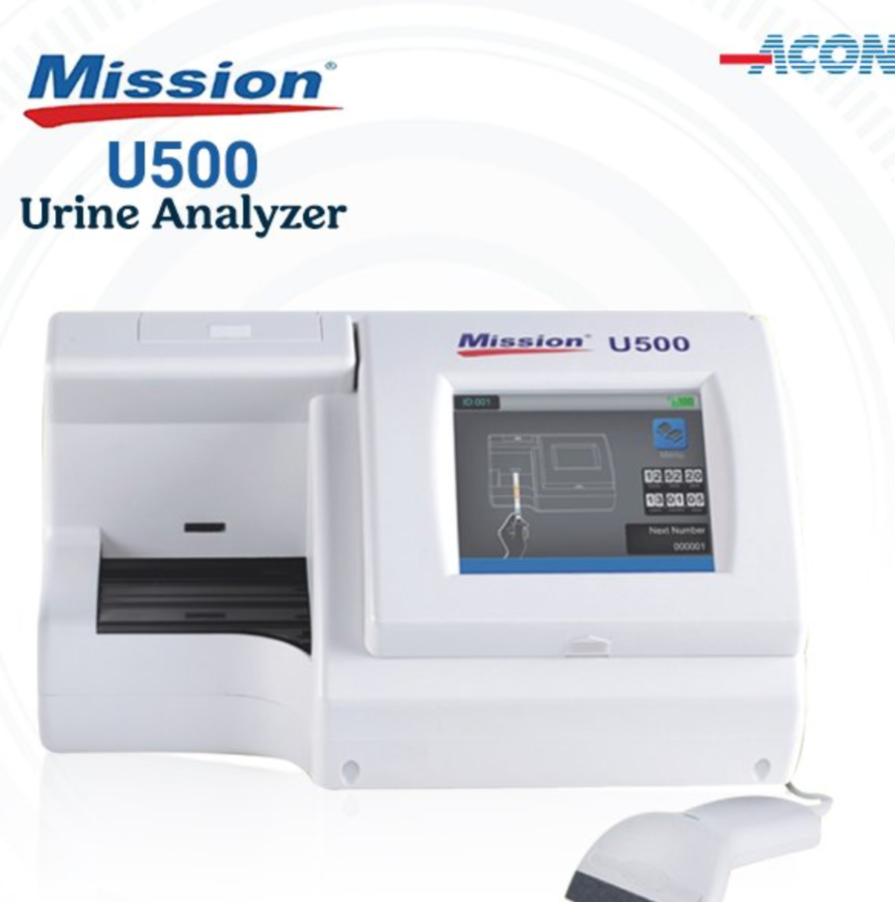

U500 Urine Analyzer
Accurate and Efficient
- Up to 500 tests/hour for medium/large volume sample testing.
- Large color touch screen LCD offers simple menu navigation.
- Ability to input urine color and clarity for better reference.
Easy to Operate
- Automatic strip detection and alignment for better efficiency.
- Uniquely designed strip platform/waste tray unit for easy one-step cleaning.
Convenient
- Can read strips with up to 14 parameters, including Microalbumin, Creatinine, and Calcium.
- Automatic calibration and waste disposal reduce hands-on time.
Data Management
- USB Port and RS232C Port for easy data transfer to a computer and LIS, while RS232C Port is also available for quick software upgrade.
- Easily search memory by test number, positive results, patient ID, date, STAT results, and QC results.
- Records Operator/Patient ID by Manual Entry or Barcode Reader.
Unique Lockout Functions
User Lockout
- Option to eliminate unapproved users with up to 10 operators.
QC Lockout
- Option to prevent testing without passing QC as necessary.
- If QC tests fail, analyzer can switch to STAT mode and list “E” at the end of each test number.
Specifications
| Feature | Specifications |
|---|---|
| Analyzer Type | Semi-Automatic |
| Methodology | Reflectance Photometry |
| Detection | Photosensitive Diode |
| Throughput | 500 tests/hour (Measuring cycle: 7 seconds/test) |
| Test Categories | Routine, STAT and QC |
| Wavelength | 525 nm and 635 nm |
| Strips Available | Up to 14 parameters (108 mm × 5 mm); See URS Parameters |
| Parameter Order | Can select the order of parameters for display and printout |
| Waste Disposal Capacity | Up to 150 strips |
| Connection Capabilities | • Internal Thermal Printer (included) • RS232C port for Software Update (included) • Optional external printer (not included) • RS232C Barcode Reader (optional) • USB or RS232C Data Transfer Cable (optional) |
| Screen Type | LCD color touchscreen |
| LIS Interface | Formatted and compatible with ACON standard interface, HL-7 compliant, and other interfaces |
| Calibration | Automatic |
| Operating Conditions | 0–40°C (32–104°F); ≤85% RH |
| Storage Conditions | -5–50°C (23–122°F); ≤90% RH |
| Power Source | 100–240 V AC, 50–60 Hz |
| Dimensions (L × W × H) | 36.6 cm × 28.3 cm × 19.5 cm (14.4" × 11.1" × 7.7") |
| Display Dimensions (L × W) | 11.5 cm × 9.0 cm (4.5" × 3.5") |
| Weight | 4.0 kg (8.8 lbs) without power supply |
